Panhard oil light piston developments

As part of my lubrication works I made some oil light pistons to replace the standard machined cast originals shown in the bottom picture.

revised oil light piston

standard oil light piston

The original had a rounded tip, whereas mine had a threaded hole, which was part of the oil relief valve assembly, and I couldn’t really alter this unless I made a two part piston.


There was a concern that this nosing or tip, despite being rounded similar to the picture below …

rounded oil light piston

… would still abrade the oil light wooden button, and cause problems further down the line. To negate this I started work on a one off two part oil light piston assembly.

First I had to replace the set screw and create a guide for the relief valve spring. I made this part in brass using the lathe from a piece I had lying around that I was going to use to replace a missing foot off my favourite briefcase!

one off another view

Then cut down a replacement oil light piston, and put them together, to look like this.

one off oil light piston

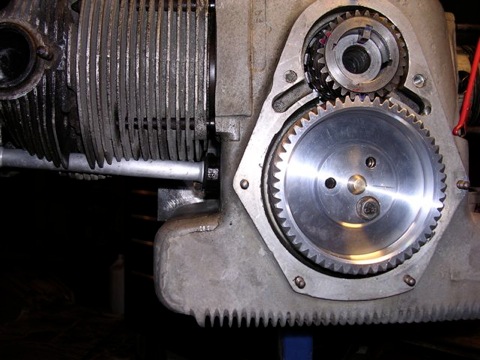

This was the finished product within the camshaft gear...


…and here is a close up.

close up

UPDATE (2011) Link to this post

It turns out this wasn’t necessary, as upon examining another early engine, with this rounded oil light piston tip fitted there was no wear to the wooden block, so this work wasn’t required, but at least there is another option for those that don’t believe me.

rounded oil light piston

oil light button no wear

Panhard double sump oil filter modifications

I found these pictures in my iPhoto gallery, so I’d thought I’d update the records.

The existing Panhard oil filter mod I created works well at lowering the oil temperature, but there was a nagging doubt that all was not as good as it could be, because on a longer run the temperature would climb, but drop when the revs were dropped. It looked like an under capacity issue, and although you can add oil coolers, the Panhard race cars went to a double sump arrangement. This was an additional sump casting that attached to the existing and was held in place by longer studs.

To test this out, I would need to make a mod to my existing Panhard oil filter to accept a double sump, because just making a longer inlet would reduce the ground clearance, and possibly cause another issue. In reality, a PL17 would be OK, but I decided to look at this further, especially when Ron Tyrrell offered a double sump casting for me to work with.

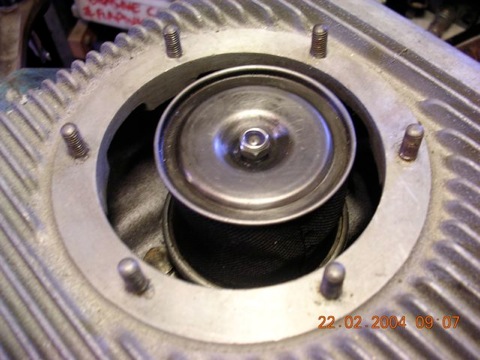

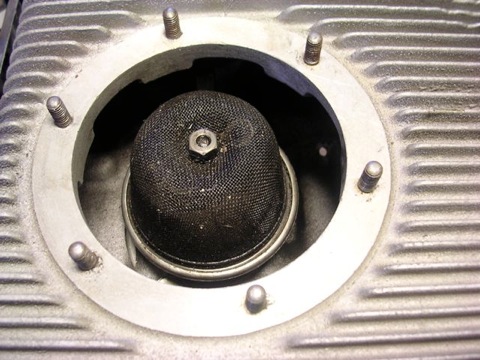

Standard filter arrangement with camera shake, showing standard crankcase sump below. The later cylindrical gauze screen is shown below, with the earlier tapered type underneath this.



To reduce the ground clearance, it was decided to put the oil filter inside, which makes oil changing potential awkward, but there are a couple of options that might negate this.

This is an earlier version, which used a internal filter I had lying around.


To make this fit, I had to revise the inlet pick up pipe, and I wasn’t that happy about the one way valve in the base of the filter either.

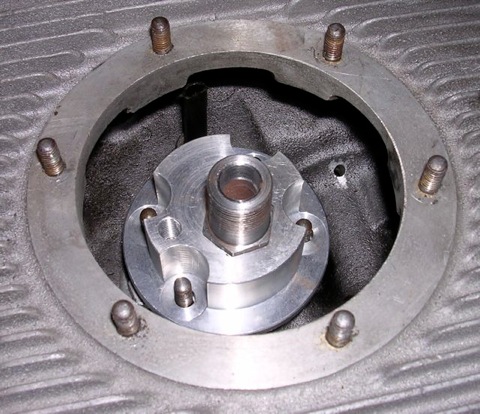

developmental oil pump baseplate

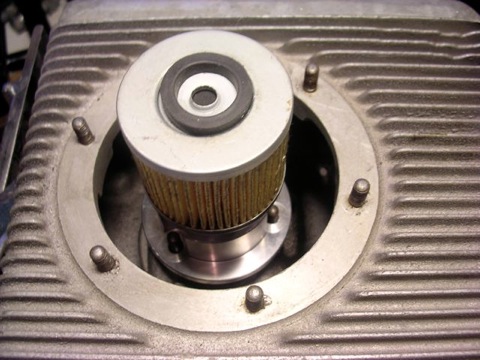

This is the raw baseplate being checked for size. For economic reasons I didn’t want to deviate from my replacement oil filter kit too much, so I was always looking to minimise the changes needed. I managed to find a shallower filter, shown below and fitted into the double sump casting...

larger filter

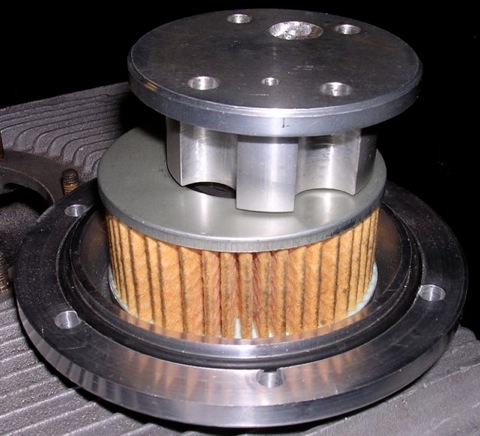

…and here is the complete assembly, essentially the revised set up, showing the new sump plate.

double sump assembly

The sump plate was substantially thinner, but the oil changing was going to be messy, because there was no drain plug fitted.

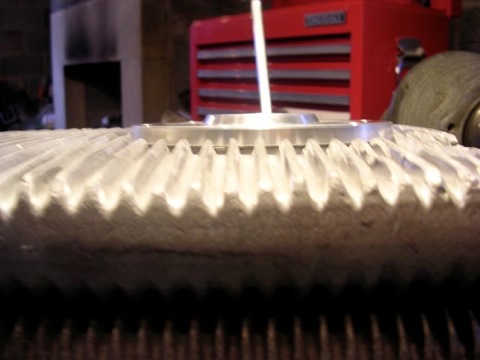

shallow sump plate

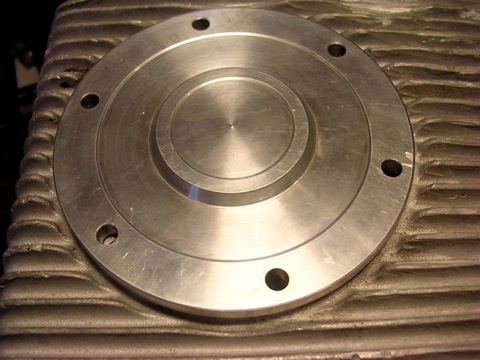

revised sump plate

However, another session on the lathe produced this, and I just needed to find a drain plug...

revised sumpplate with drain

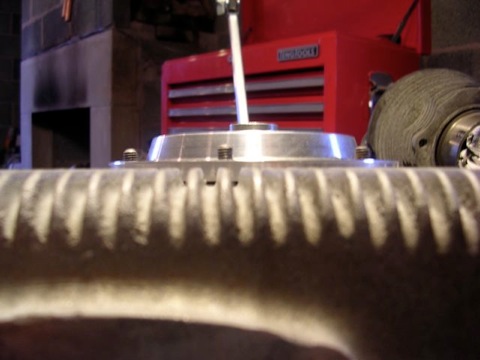

revised depth

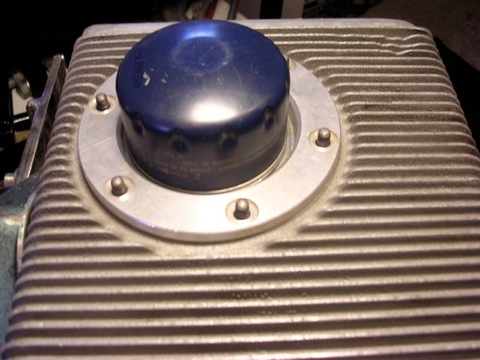

…which I did here, and it’s marginally higher than the previous version, but more practical and not as tall a fitting as my standard replacement filter cartridge, shown below (the blue one)

another version

Panhard replacement filter

The new filter arrangement worked very well in Ron’s car, and oil temperatures were consistently lower at speed, and did not climb into the higher levels he had seen previously in motorway work. He is convinced the increase in capacity is the correct way to go, because if it was a flow rate issue, the oil temperatures would stay high. Unfortunately, double sump castings are rarely available, but any thing you do to increase the oil capacity of these engines will be beneficial.
